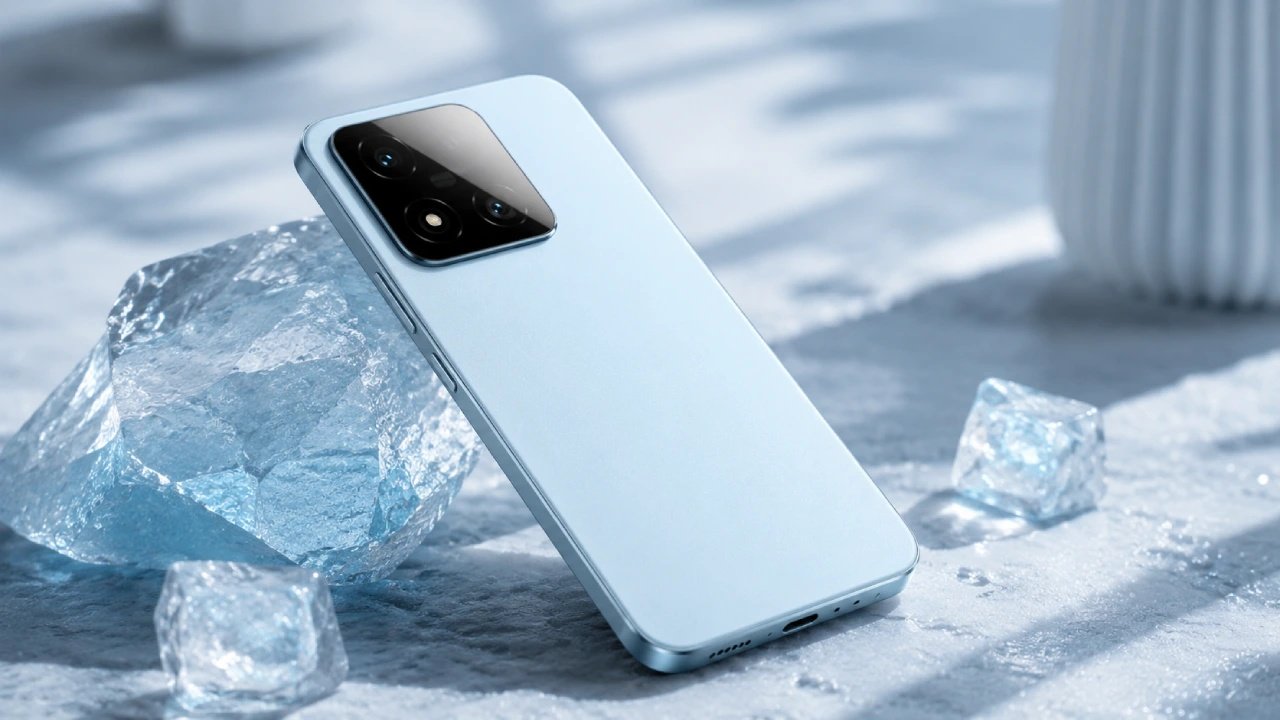

A comprehensive teardown video published by Chinese hardware analysis channel WekiHome has given tech enthusiasts an immediate look inside the newly announced Xiaomi 17 Max. Arriving as a surprise mid-cycle addition to the Xiaomi 17 flagships launched late last year, the Max variant introduces a completely re-engineered internal landscape to accommodate a massive, class-leading power cell without turning the device into an unmanageable brick.
The Battery Engineering Marvel: Packing 8,000 mAh
The absolute centerpiece of the WekiHome teardown is the 8,000 mAh battery, which sets a new capacity standard for a premium, non-rugged flagship smartphone.
-
Silicon-Carbon Chemistry: To prevent the phone from exceeding a reasonable thickness, Xiaomi utilized a next-generation silicon-carbon anode formulation. This allows for significantly higher energy density compared to traditional graphite cells, packing massive capacity into a remarkably slim physical footprint.
-
Dual-Cell Split Architecture: The video reveals that the pack is split internally into two distinct physical cells operating in parallel. This layout is vital for heat mitigation, allowing the device to absorb 100W wired charging and 50W wireless charging without thermal throttling.
-
Reverse Power Delivery: The motherboard is packed with dedicated buck-boost converters to handle high-output 22.5W reverse charging (both wired and wireless), effectively turning the phone into a high-speed external power bank for other accessories.
Core Internal Hardware & Architecture
Beyond the power cell, the teardown exposes a dense, highly optimized three-stage sandwich motherboard layout that holds top-tier processing power and an advanced imaging array.
1. Processing and Thermal Management
The top section of the chassis is dominated by the Snapdragon 8 Elite Gen 5 SoC, paired with up to 16GB of LPDDR5X RAM layered directly on top of the processor block. To keep the thermals of the intensive Gen 5 chip in check, Xiaomi implemented an expansive dual-layer vapor chamber (VC) cooling system that wraps around the battery housing and makes direct contact with the aluminum mid-frame.
2. The Optical Assembly
The camera cutout houses three massive sensor blocks grouped tightly together to optimize physical space:
-
Primary Sensor: A massive 200MP sensor equipped with physical Optical Image Stabilization (OIS), acting as the anchor of the module.
-
Periscope Telephoto: A 50MP sensor featuring 3x optical zoom and a horizontal prism assembly to save depth clearance.
-
Ultrawide: A compact 50MP sensor utilizing a custom low-distortion lens element.
Hardware Specifications Summary
| Component / Feature | Technical Specification | Engineering Detail |
| Display Panel | 6.9-inch LTPO AMOLED | 1200×2608 resolution, 120Hz, 3,500-nit peak brightness |
| Silicon Platform | Snapdragon 8 Elite Gen 5 | 3nm architecture with custom high-performance cores |
| Memory & Storage | 12GB / 16GB RAM | 256GB / 512GB UFS 4.0 flash storage |
| Primary Camera | 200MP Main + OIS | Ultra-high resolution sensor with custom 8P lens |
| Operating System | HyperOS 3 | Layered on top of the native Android 16 core |
The Teardown Verdict: WekiHome’s architectural overview highlights that the Xiaomi 17 Max isn’t just a simple spec bump; it represents a major packaging achievement. By leveraging high-density silicon-carbon battery chemistry, structural engineers were able to pair an expansive 6.9-inch 3,500-nit display with an unprecedented 8,000 mAh capacity—all while maintaining the slim, premium handheld ergonomics expected of a modern flagship.
